C1101PA1-433MHz RF module is low cost and highly integrated UHF transceiver designed for very low power wireless applications.
General description
The CC1101PA1-433MHz RF module is low cost and highly integrated UHF transceiver designed for very low power wireless applications. hese certified modules, operating in the license free 433 MHz ISM band, can be easily integrated into your application, thereby reducing development time and cost.
Features
Low power UHF wireless transceivers @433MHz
Supports FSK, GFSK, ASK/OOK and MSK
Ultra high sensitivity -116dBm @ 1.2kbps,
Configurable data rates 1.2k to 500 kbps
Separate 64 byte RX and TX data FIFOs
Wake-on-Radio functionality
Support automatic Clear Channel Assessment
RSSI Output & Link Quality Indictor
Low power 3.0~3.6V supply
SPI Interface
Applications
AMR – Automatic Meter Reading
Two-way RKE – Remote Keyless Entry
Low power telemetry
Home and building automation
Wireless alarm and security systems
Industrial monitoring and control
Wireless sensor networks

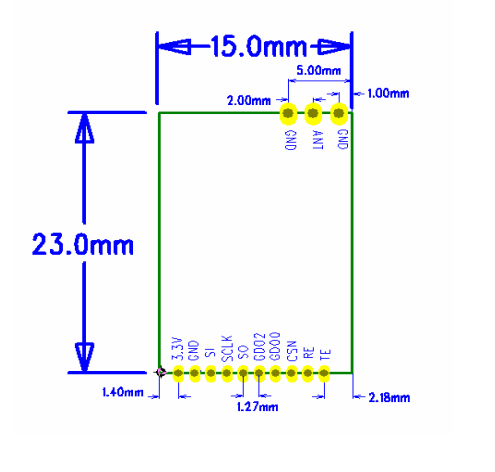

Outline and Size
General description
The CC1101PA1-433MHz RF module is low cost and highly integrated UHF transceiver designed for very low power wireless applications. hese certified modules, operating in the license free 433 MHz ISM band, can be easily integrated into your application, thereby reducing development time and cost.
Features
Low power UHF wireless transceivers @433MHz
Supports FSK, GFSK, ASK/OOK and MSK
Ultra high sensitivity -116dBm @ 1.2kbps,
Configurable data rates 1.2k to 500 kbps
Separate 64 byte RX and TX data FIFOs
Wake-on-Radio functionality
Support automatic Clear Channel Assessment
RSSI Output & Link Quality Indictor
Low power 3.0~3.6V supply
SPI Interface
Applications
AMR – Automatic Meter Reading
Two-way RKE – Remote Keyless Entry
Low power telemetry
Home and building automation
Wireless alarm and security systems
Industrial monitoring and control
Wireless sensor networks
Outline and Size
